Hot plates

Hot plates

General description:

With outside dimensions of 210 mm x 210 mm, the heating element of the SJ type is suitable for quickly and evenly heating large areas up to 500 °C. The heating plates can also be arranged side by side like tiles, so that almost unlimited surface areas can be heated up - all with a very small thickness of only 6 mm. This makes the heating plate optimally suited, for example, to be used as a space heater in metal 3D printing systems, or to heat metal sheets over a large area. Of course, when using several heating elements, these can also be controlled separately – in this way, temperature profiles in the surface can be set precisely.


Basic values:

Parameter Value

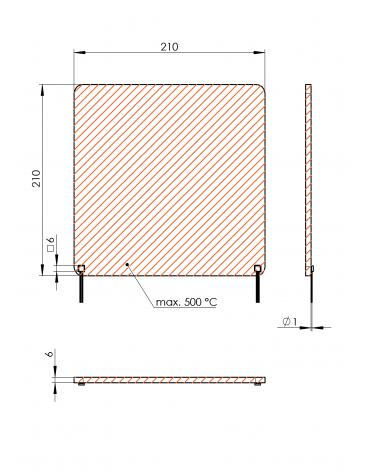

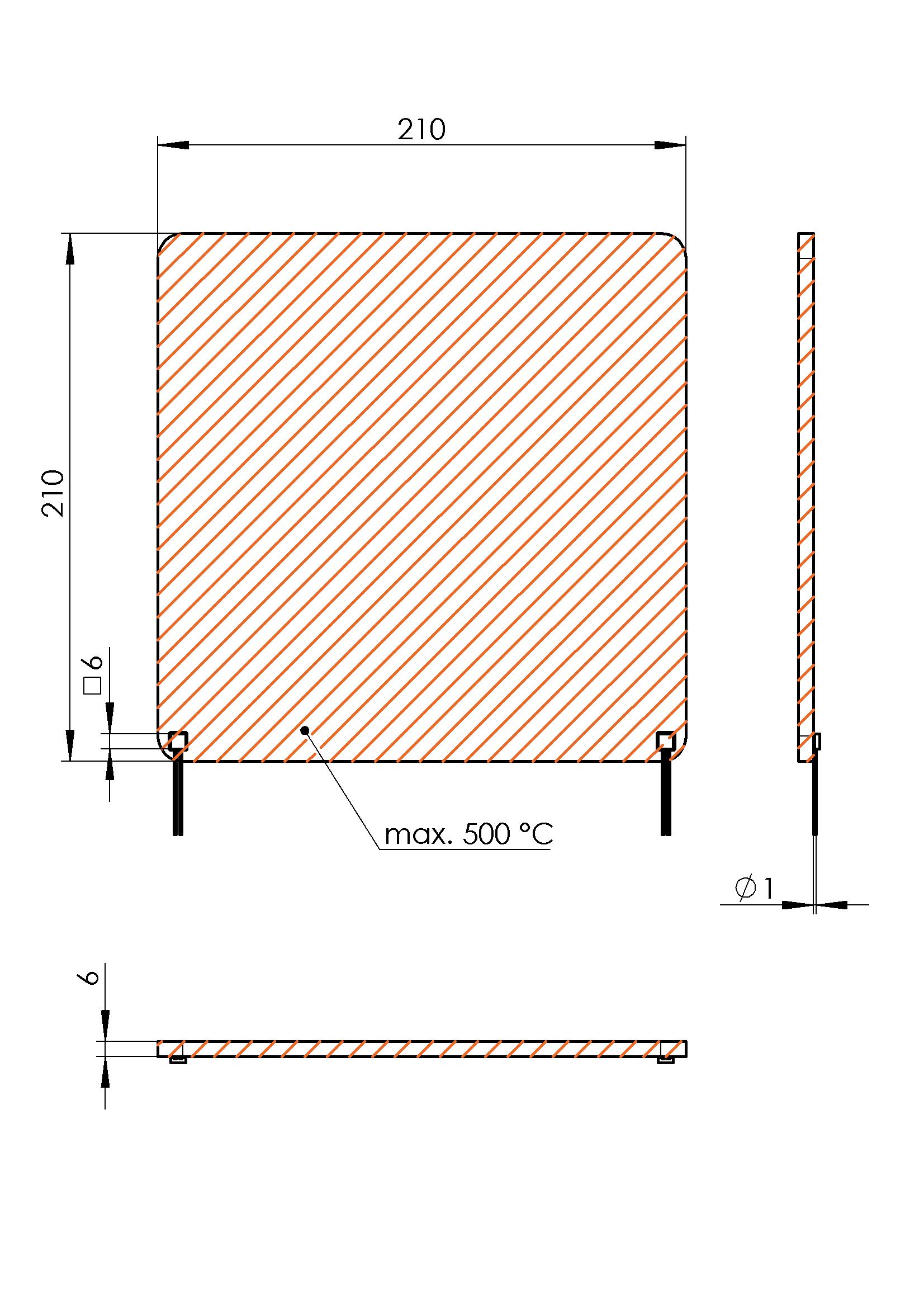

Dimensions 210 x 210 x 6 mm
Heated area 210 x 210 x 6 mm
Tmax 500 °C

Details:

Standard

Description

* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 950
Resistance @ 20 °C 42,32 Ω ±25 %
Nominal voltage 230 V
Nominal power @ 20 °C 1 250 W*
