Flat heating elements

Flat heating elements

General description:

With the practical square base area of 12 mm x 12 mm, the type HT heating element is often used as a heated sample carrier in research and development applications. The good chemical resistance properties of the silicon nitride ceramics of the heating element allow such use even with cases of aggressive sample material. The hardness and wear resistance guarantee a long service life. Other application areas are microelectronics and medical engineering.

Basic values:

Parameter Value

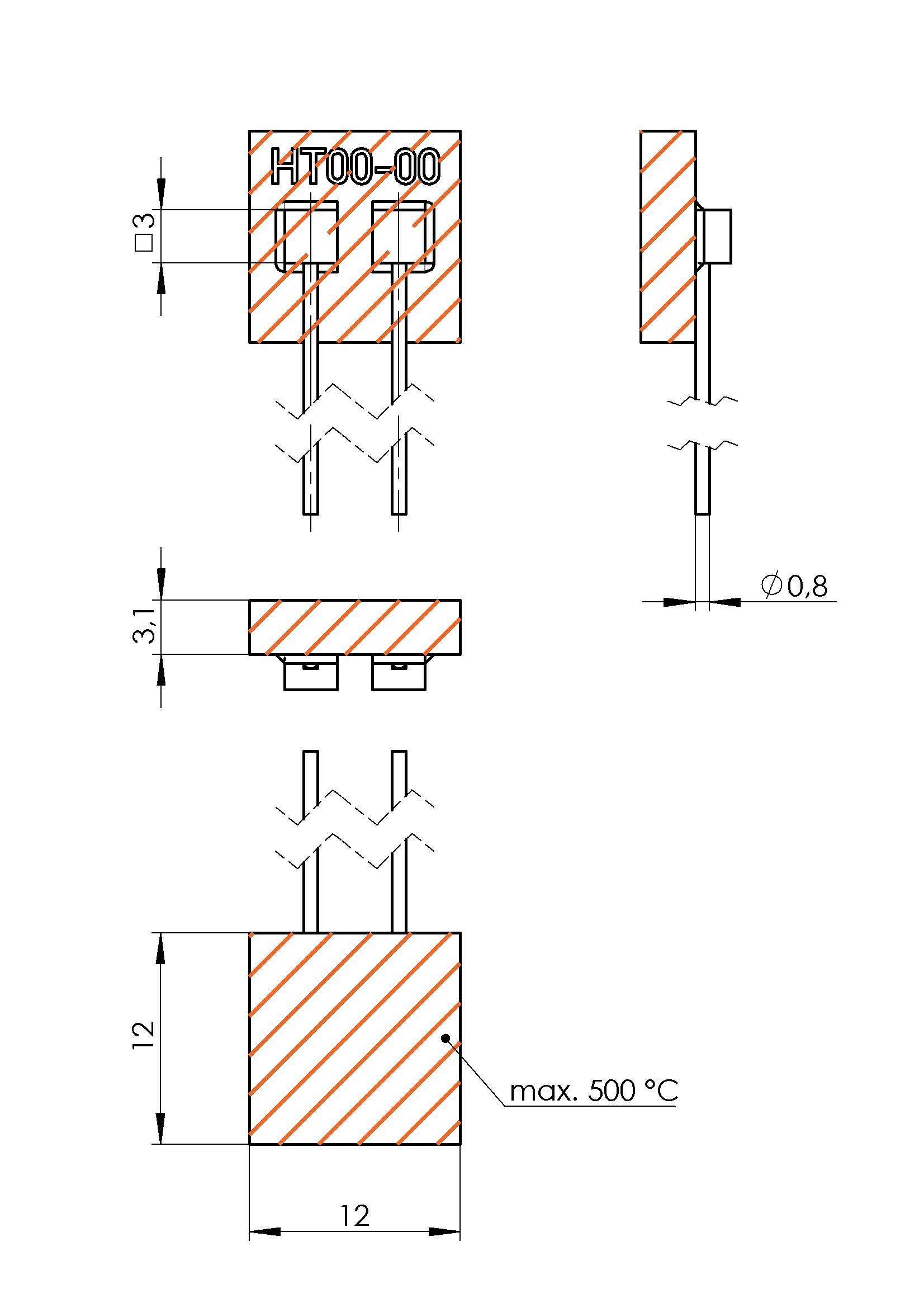

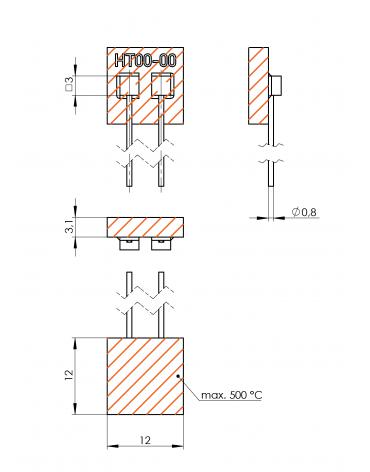

Dimensions 12 x 12 x 3.1 mm
Heated area 12 x 12 x 3.1 mm
Tmax 500 °C




* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 589
Resistance @ 20 °C 18,3 Ω ±25 %
Nominal voltage 24 V
Nominal power @ 20 °C 31,5 W*
