Flat heating elements

Flat heating elements

General description:

With more than 40 W of rated power, the heating element of the type HR is a powerful miniature heater. The square array of width and height of the heating element makes it possible to also use the side surfaces for heat transfer. Thus, the type HR is ideal for partially recessed installation, for example when requiring space-saving and targeted heating of machine parts with high performance output, such as in plastics injection moulding machines or packaging machines.

Basic values:

Parameter Value

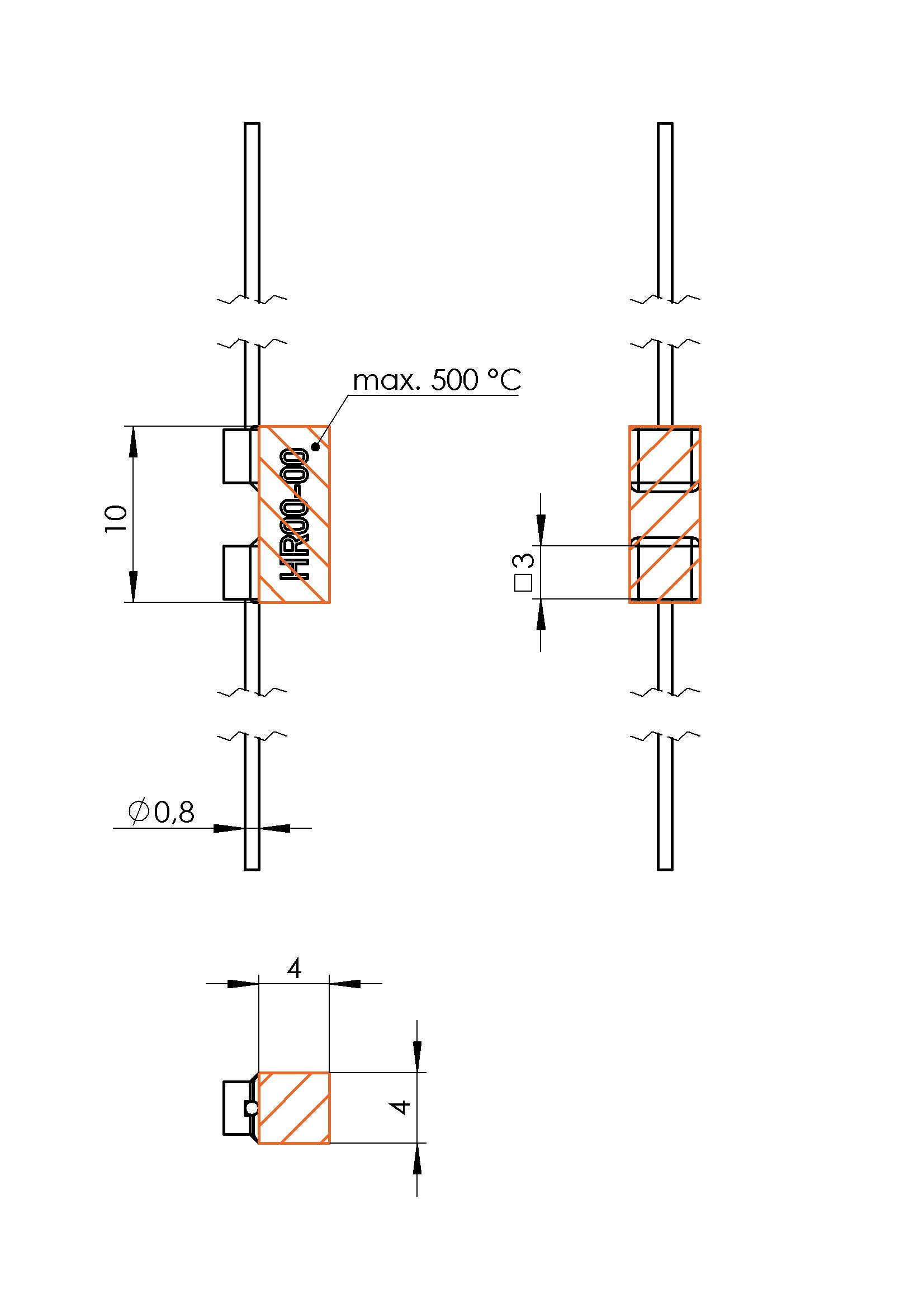

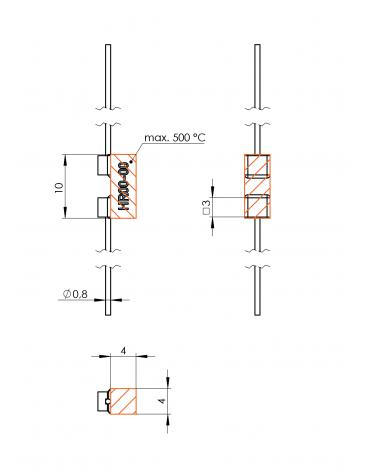

Dimensions 10 x 4.0 x 4.0 mm
Heated area 10 x 4.0 x 4.0 mm
Tmax 500 °C




* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 219
Resistance @ 20 °C 14 Ω ±25 %
Nominal voltage 24 V
Nominal power @ 20 °C 41 W *
