Flat heating elements

Flat heating elements

General description:

The maximum temperature of 1 000 °C and the favourable dimensions of the heated zone of 50 mm x 50 mm allow - with the type HV - use of the heating element for many different application scenarios. Thus, for example, by using several heating elements of the type HV with suitably arranged "cold zone", a cuboid or cube-shaped body can be heated up to 1 000 °C.


Basic values:

Parameter Value

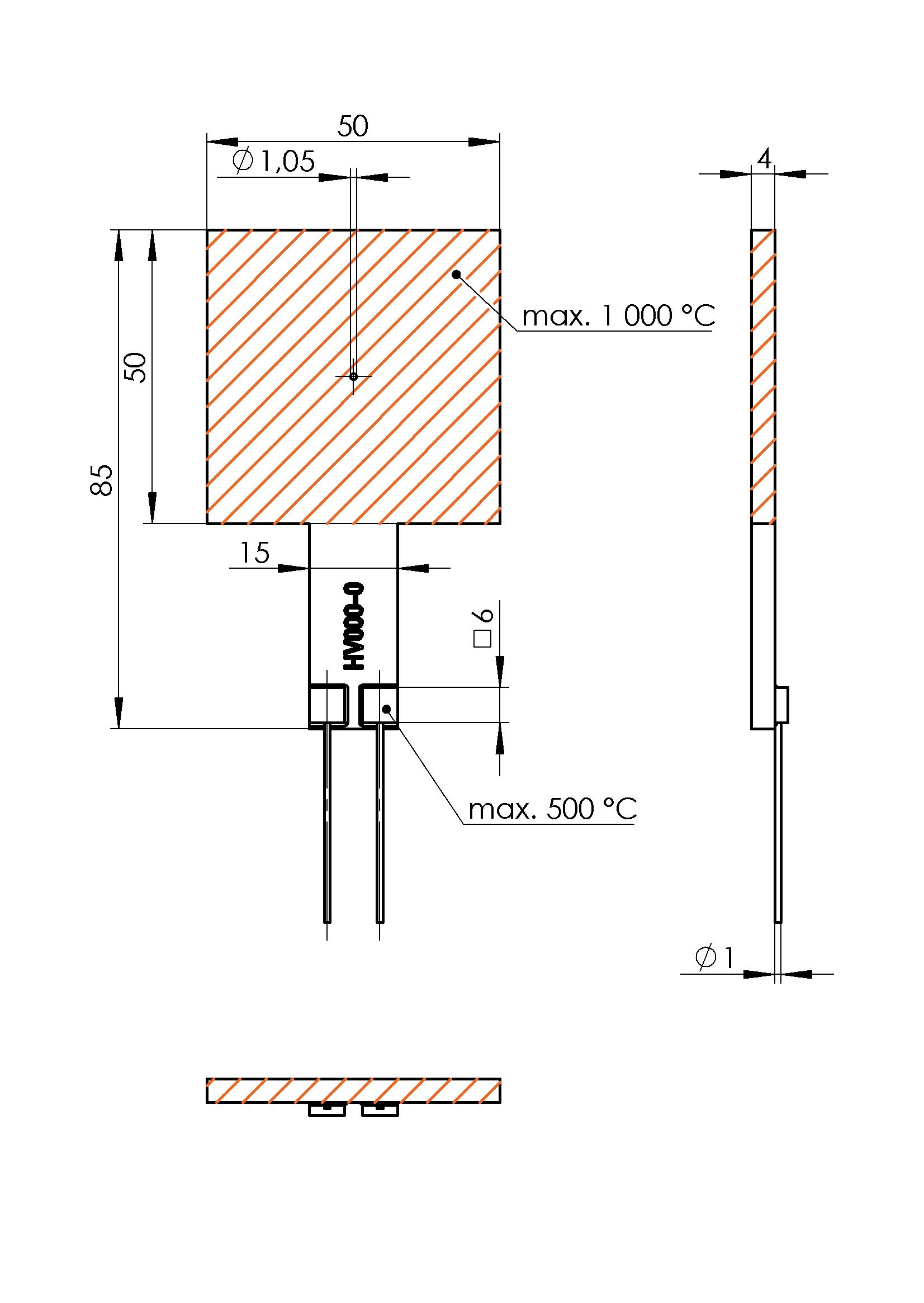

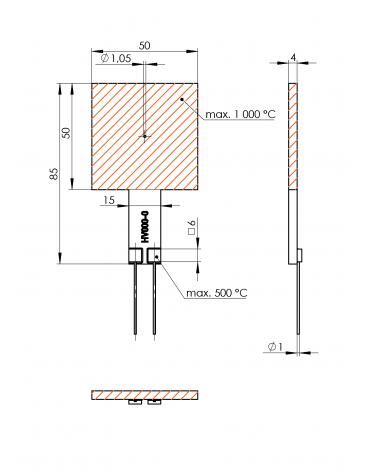

Dimensions 85 x 50(15) x 4.0 mm
Heated area 50 x 50 x 4.0 mm
Tmax 1 000 °C

Details:

with sensor hole Ø1.0 mm

Description

The heating element has a blind hole, into which a temperature sensor with Ø1,0 mm, for example a mantle thermocouple, can be inserted.
* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 389
Resistance @ 20 °C 52 Ω ±25 %
Nominal voltage 230 V
Nominal power @ 20 °C 1 017,3 W*
