Flat heating elements

Flat heating elements

General description:

With the heating elements of the type CLB, highest surface performances and heating rates are achievable. The design in relation to Art. No. FLE 100 303 has a rated power of more than 230 W - with only 14 mm x 14 mm of base area! With this output capacity, the heating element can heat at more than 150 K/s. In this case, it is especially important to use appropriate control technology where the control speed can keep up with the heating element. Our control engineering experts will gladly advise you on this.


Basic values:

Parameter Value

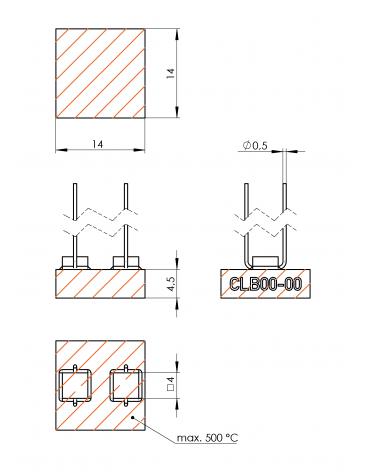

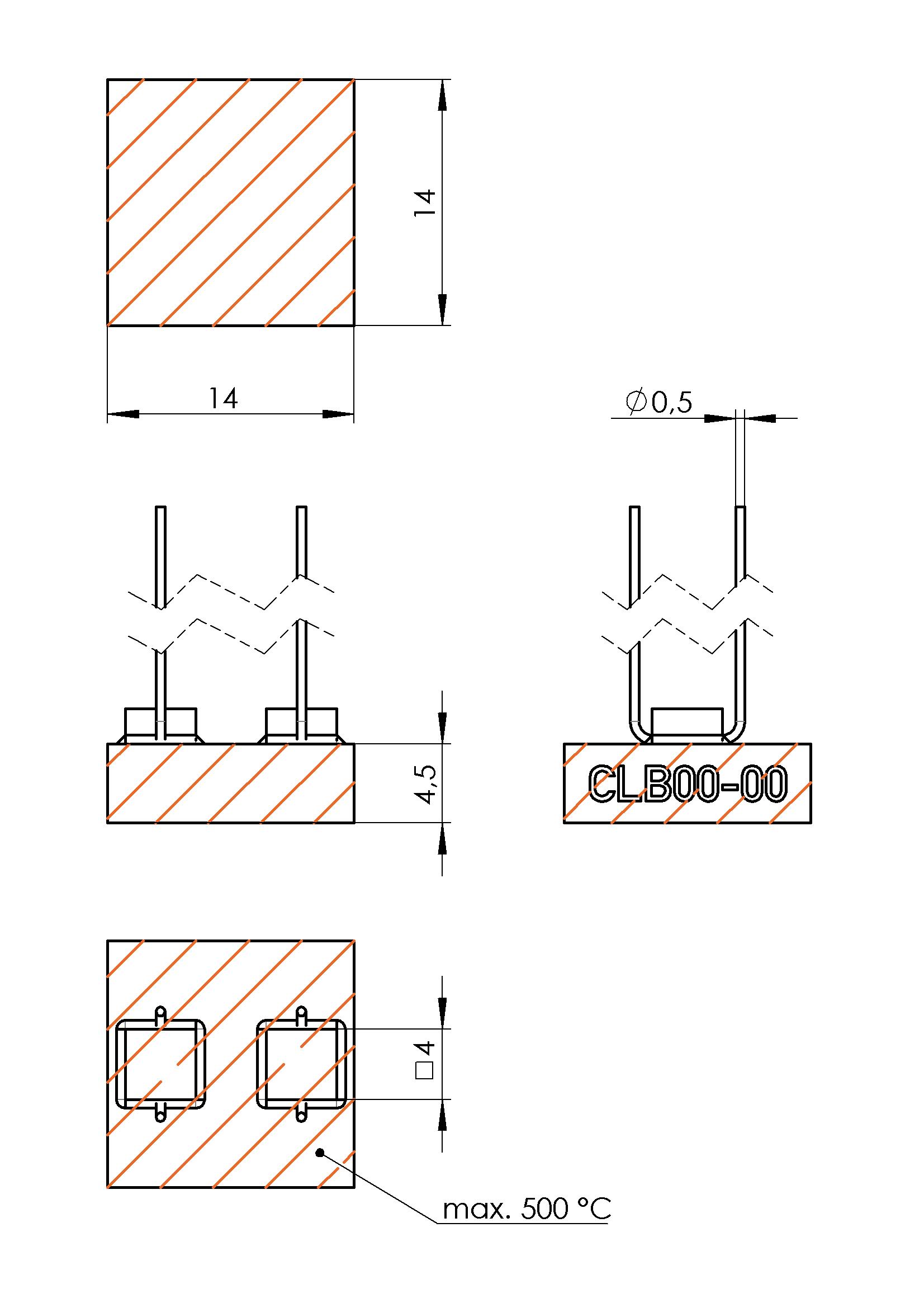

Dimensions 14 x 14 x 4.5 mm
Heated area 14 x 14 x 4.5 mm
Tmax 500 °C

Details:

Standard

Description

* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 034 FLE 100 303
Resistance @ 20 °C 15 Ω ±25 % 10 Ω ±25 %
Nominal voltage 48 V 48 V
Nominal power @ 20 °C 153.6 W* 230.4 W*
